Nota: Si no encuentra lo que necesita, favor de llamarnos al tel (55) 5355-0089 o mandarnos correo info@viterbimexico.com con el modelo o descripción de lo que necesita.

Bienvenidos a la seccion pedidos de VITERBI. En este sitio es totalmente seguro, ya que solo generamos su orden de pedido y con este puedan realizar su pago, por deposito bancario o transferencia electronica. Una vez realizado el pedido recibira por correo toda la información, sugerimos imprimirla para que tengan todos los datos completos.

RDL-3000 XP Connect > IWS > PTP PMP EXTERNAL ANTENNA 2.3-2.7, 3.3-3.8 Ghz License, 4.9.-5.8 Ghz Unlicensed Bundle Prices
Part Number
Description
Price (USD)
Quantity

CONN-IWS-2327ICR-01 CONN-IWS-3338ICR -01 CONN-IWS-4958ICR-01

Connect-IWS Terminal+Serial 2xTNC(f) 2eth-RJ45 2Ser-RJ45 Dual-DC 2xRF-Jumpers 2xLP DIN. (Need Antenna, POE Inyector and Mounting Kit).

$1,535.00
RDL-3000 XP Connect > OW > PTP PMP 470-698MHZ, 2.3-2.7, 3.3-3.8 Ghz License, 4.9.-5.8 Ghz Unlicensed Bundle Prices
Part Number
Description
Price (USD)
Quantity

CONN-OW-2023IA-01 CONN-OW-3338IA -01 CONN-OW-4958IA-01

Connect-OW IP Terminal Antenna 8in(205mm) Int-Ant eth-RJ45 Gland MNT. (Includes: Integrated antenna flat panel and Mounting Kit, Need POE Inyector).

$1,314.50

CONN-OW-470698ER-01 CONN-OW-2327ER -01 CONN-OW-3338ER -01 CONN-OW-4958ER-01

Connect-OW-ER IP Terminal 2xN(f) 1eth-RJ45 Gland. (Need Antenna, POE Inyector and Mounting Kit).

$1,314.50

RDL-3000 XP EDGE > PTP PMP 470-698MHZ, 2.3-2.7, 3.3-3.8 Ghz License, 4.9.-5.8 Ghz Unlicensed Bundle Prices
Part Number
Description
Price (USD)
Quantity
3K-SU-RF470698-04
3K-SU-RF2327-04
3K-SU-RF3338-01
3KRR-G-G-T5X

RDL3000 XP Edge Terminal 2xRF-N(f) 1xEth-RJ45 Gland. (Need Antenna, POE Inyector and Mounting Kit).

$1,644.50

RDL-3000 XP ELLIPSE > PTP PMP 470-698MHZ, 2.3-2.7, 3.3-3.8 Ghz License, 4.9.-5.8 Ghz Unlicensed Bundle Prices
Part Number
Description
Price (USD)
Quantity

3K-SC-RF470698-GPS-04
3K-SC-RF2327-GPS-04
3K-SC-RF3338-GPS-01
3KRR-G-G-T5X-GPS

RDL3000 XP Ellipse Base Station RF-2xN(f) GPS-1xTNC(f) Eth-1xRJ45 100Base-T Gland. (Need Antenna , Antenna GPS, POE Inyector and Mounting Kit).

$2,194.50

RDL-3000 XP ENTERPRISE > XR > PTP PMP 470-698MHZ, 2.3-2.7, 3.3-3.8 Ghz License, 4.9.-5.8 Ghz Unlicensed Bundle Prices
Part Number
Description
Price (USD)
Quantity

ENT-CPE-470698XR-D1
ENT-CPE-2327XR-D1
ENT-CPE-3338XR-D1
ENT-CPE-4958XR-D1

RDL3000 XP Enterprise-XR CPE. AC-POE, w/Antenna 14in(36cm) EXT-IA eth-RJ45 Gland MNT. (Includes: Integrated antenna flat panel, Mounting Kit and POE Inyector).

$595.00

RDL-3000 XP ENTERPRISE > CPE > PTP PMP 470-698MHZ, 2.3-2.7, 3.3-3.8 Ghz License, 4.9.-5.8 Ghz Unlicensed Bundle Prices
Part Number
Description
Price (USD)
Quantity

ENT-SU-2327IA-D1
ENT-SU-3338IA-D1
ENT-SU-4958IA-D1

RDL3000 XP Enterprise CPE AC-POE w/Antenna 8in Int-Ant Eth-RJ45 Gland Mount. (Includes: Integrated antenna flat panel, Mounting Kit and POE Inyector).

$434.50

ENT-CPE-2327RF-D1
ENT-CPE-3338RF-D1
ENT-CPE-4958RF-D1

RDL3000 XP Enterprise CPE AC-POE 2x-RF-N(f) Eth-RJ45 Gland Mount. (Includes: Mounting Kit and POE Inyector. Need Antenna).

$595.00


RDL-3100 XG > PTP PMP 4.9.-5.8 Ghz Unlicensed Bundle Prices
Part Number
Description
Price (USD)
Quantity

3KXG-ELLIPSE-4958RF-01

RDL3100 XG Ellipse 4.9-5.8GHz Base Station RF-2xN(f) GPS-1xTNC(f) 1xGigE-RJ45 Gland.

$2,744.50


3KXG-ELTE-GPS-4958HIA-01

RDL3100 XG Elte-XR High Gain Remote Terminal 4.9-5.8GHz 24dBi 14in Ant GPS 1xGigE-RJ45 Gland MNT

$2,744.50




Antennas Sector > PMP 470-698MHZ, 2.3-2.7, 3.3-3.8 Ghz License, 4.9.-5.8 Ghz Unlicensed Bundle Prices
Part Number
Description
Price (USD)
Quantity

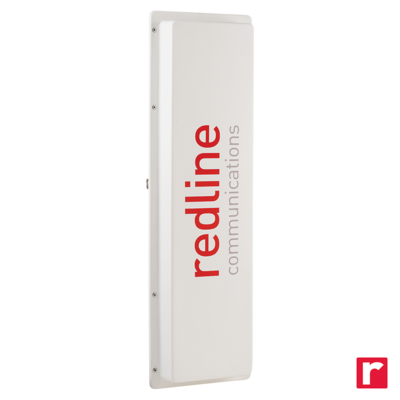

AFS-DBG-60090-01
Antenna Sectoral 470-698MHz UHF 11 dBi 5ft(1.5m) 90deg Dual-Pol Ant 2xN(f) GPS TNC(f) DT-MNT RF-JMP
$3,295.00
AFS-DBG-0290-01
Antenna Sectoral 2.3-2.7GHz 14.5dBi 3ft(90cm) 90-deg dual-pol GPS-Ant 2xN(m) RA 1xTNC(m) RA DT-MNT.
$1,865.00
AFS-DBG-0390-01
Antenna Sectoral 3.3-3.8GHz 14.5dBi 2ft(60cm) 90-deg dual-pol GPS-Ant 2xN(m) 1xTNC(m) DT-MNT

$ 765.00

AFS-DBG-0590-02
Antenna Sectoral 4.94-5.875GHz 16dBi 20in (508mm) 90-deg dual-pol GPS-Ant 2xN(m) 1xTNC(m) DT-MNT
$765.00

Antennas Omni > PTP PMP 470-698MHZ, 2.3-2.7, 3.3-3.8 Ghz License, 4.9.-5.8 Ghz Unlicensed Bundle Prices
Part Number
Description
Price (USD)
Quantity

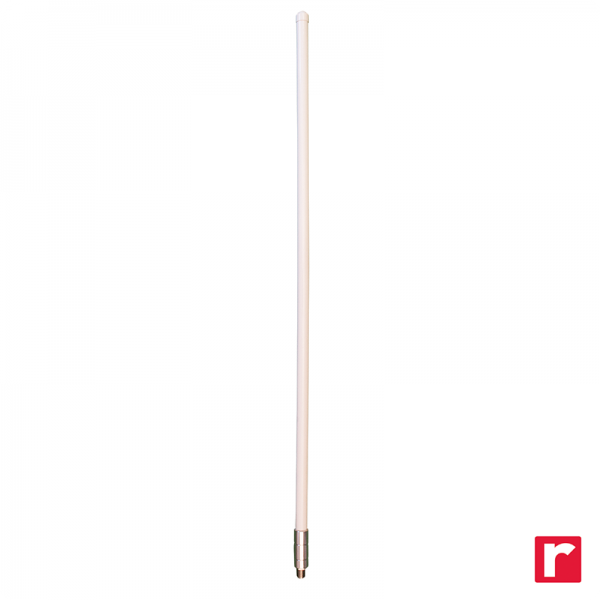

AOD-DB-470698-28-01
Antenna Omni 470-698MHz UHF 6.8dBi 48in(1.22m) EL v-pol 1xN(f) Pole-MNT - 1 per box
$1,645.00

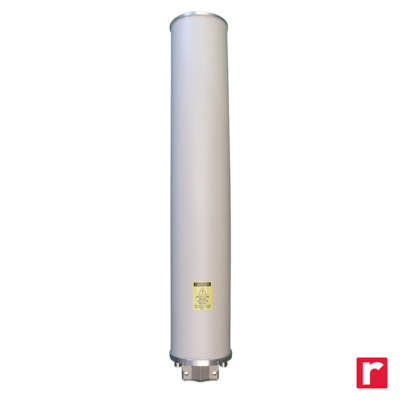

AOD-DB-0212-02
Antenna Omni 2300-2700MHz 10dBi 25in(640mm) 12deg dual-pol v&h 2xN(f) MNT
$ 354.00
AOD-DB-0312-02
Antenna Omni 3300-3800MHz 10dBi 19in(485mm) 11deg dual-pol v&h 2xN(f) MNT

$ 354.00

AOD-DB-0512-02
Antenna Omni 4.940-5.875GHz 10dBi 14in(36cm) 360deg dual-pol v&h 2xN(f) MNT. Mars
$ 354.00


Antennas Parabolic > PTP PMP 2.3-2.7 Ghz License Bundle Prices
Part Number
Description
Price (USD)
Quantity
APD-DB-02-2ft-01

Antenna Parabolic 2.3-2.7GHz 21dBi 2ft(60cm) 14deg v&h-pol 2xN(f)

$1,050.00
APD-DB-02-2ft-RAD-01
Antenna Parabolic 2.3-2.7GHz 21dBi 2ft(60cm) 14deg v&h-pol 2xN(f) w/MNT Radome
$1,493.75
APD-DB-02-3ft-01

Antenna Parabolic 2.3-2.7GHz 24dBi 3ft(90cm) 9.5deg v&h-pol 2xN(f)

$ 2,125.00

APD-DB-02-3ft-RAD-01

Antenna Parabolic 2.3-2.7GHz 24dBi 3ft(90cm) 9.5deg v&h-pol 2xN(f) w/MNT Radome
$2,493.75
Antennas Parabolic > PTP PMP 3.3-3.8 Ghz License Unlicensed Bundle Prices
Part Number
Description
Price (USD)
Quantity
APD-DB-03-2ft-03

Antenna Parabolic 3.3-3.8GHz 24.2dBi 2ft(60cm) 10deg v&h-pol 2xN(f) w/MNT

$1,050.00

APD-DB-03-2ft-RAD-01

Antenna Parabolic 3.3-3.8GHz 25dBi 2ft(60cm) 10deg v&h-pol 2xN(f) w/MNT Radome

$1,493.75
APD-DB-03-3ft-02

Antenna Parabolic 3.3-3.8GHz 27.7dBi 3ft(90cm) 8deg v&h-pol 2xN(f) w/MNT

$ 2,125.00

APD-DB-03-3ft-RAD-01

Antenna Parabolic 3.3-3.8GHz 27.7dBi 3ft(90cm) 8deg v&h-pol 2xN(f) w/MNT Radome
$2,493.75
Antennas Parabolic > PTP PMP 4.9.-5.8 Ghz Unlicensed Bundle Prices
Part Number
Description
Price (USD)
Quantity
A2FT2906LTPD
Antenna Parabolic 4.94-5.875GHz 29dBi 2ft(60cm) 6deg v&h-pol 2xN(f) w/MNT ECO
$493.75
A3FT3204LTPD
Antenna Parabolic 4.94-5.875GHz 32dBi 3ft(90cm) 4deg v&h-pol 2xN(f) w/MNT ECO
$868.75
APD-DB-05-2ft-02

Antenna Parabolic 4.94-5.875GHz 29dBi 2ft(60cm) 6.2deg v&h-pol 2xN(f) w/MNT IND

$1,050.00

APD-DB-05-2ft-RAD-01

Antenna Parabolic 4.94-5.875GHz 29dBi 2ft(60cm) 6.2deg v&h-pol 2xN(f) w/MNT Radome IND

$1,493.75
APD-DB-05-3ft-02

Antenna Parabolic 4.94-5.875GHz 32.5dBi 3ft(90cm) 4.2deg v&h-pol 2xN(f) w/MNT IND

$ 2,125.00

APD-DB-05-3ft-RAD-01

Antenna Parabolic 4.94-5.875GHz 32.5dBi 3ft(90cm) 4.2deg v&h-pol 2xN(f) w/MNT Radome IND

$2,493.75



Accessories
Part Number
Description
Price (USD)
Quantity

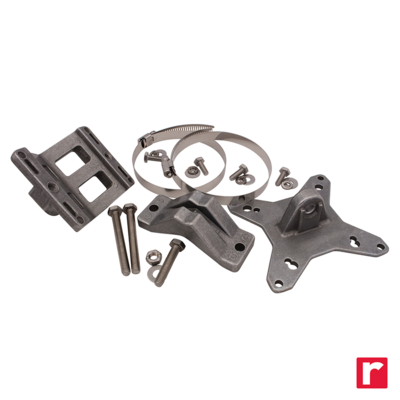

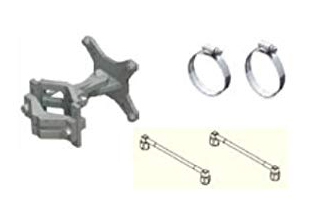

3K-LW-MNT-SS-02

Mounting Kit - Pole 1-4.25in(25-105mm) Lightweight 2x16in(406mm) Coax LMR400 2xN(m) 90-deg Cables

$ 175.00
3K-LW-MNT-SS-03
Mounting Kit - Pole 1-4.25in(25-110mm) Lightweight 2x6.5ft(2m) Coax LMR400 2xN(m) straight Cables
$ 435.00
RDL-MNT-ALU-01
Mounting Kit - Pole 1-4.25in(25-105mm) Lightweight for RDL3000 and RDL-3100 - Bracket Only
$ 75.00

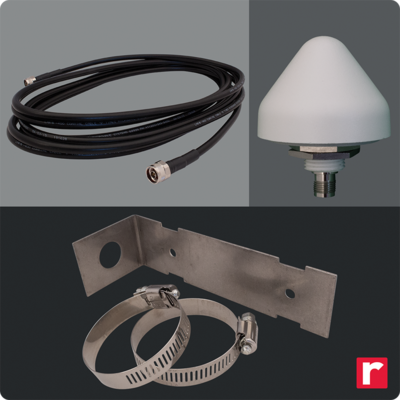

3K-GPS-ANT
Antenna GPS Kit - 3978D GPS Ant TNC(f) + Coax LMR195 2xTNC(m) 20ft(6m) + Pole Mount Hardware
$ 215.00
PS-ACDC-POE-30W-01
POE Power Injector AC 100-240VAC IP 30W 802.3at Shelf-Wall 10/100/1000BaseT 2xRJ45 HI-Pwr UHF ONLY
$ 85.80
PS-ACDC-POE-30W-02
POE Power Injector AC 100-240VAC 30W 802.3at Shelf-Wall 10/100/1000BaseT GigE 2xRJ45
$ 85.80
PSA-POE-1D
POE Power Injector DC 18-60VDC 20W Shelf-Wall 10/100BaseT 2xRJ-45 Non-Industrial
$ 93.60
PPT-B
Single AC Power cord: Type-B plug, applicable to the U.S. and Canada
$ 3.00
CAT5-100
Ethernet Category-5 Single Shielded Outdoor Cable: 100' (~30 m) with grounding RJ-45 Type connectors.
$ 125.00
CAT5-300
Ethernet Category-5 Double Shielded Outdoor Cable: 300' (~91 m) with grounding RJ-45 Type connectors.
$ 345.00
ALLSXMME
Polyphaser RF Lightning Protection Kit: one RF Lightning arrestor surge-side female, protected-side male N-Type connectors
$ 128.00
LP-POE-ALPU-01
Surge Arrestor Ethernet 100 Mbps PoE-Compatible Outdoor Pole or Wall Mount Industrial 2xRJ45 Jacks.

$ 225.00

LP-POE-INL-IND-01
Surge Arrestor Ethernet GigE PoE Outdoor Bulkhead Inline Industrial 2xRJ45 Jacks
$ 275.00
LP-POE-COMM-GBE-01
Surge Arrestor Ethernet GigE PoE-Compatible Outdoor Wall Mount 2xRJ45 Jacks
$ 56.00

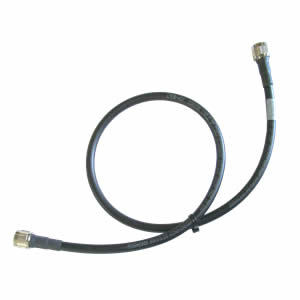

CAB-RF-3P
Cable RF 3 foot (~90cm) N Male- N Male LMR-400
$ 72.00
NX460
Polyphaser Lightning Protector: Indoor POE lightning arrestor for protection damage caused by indirect lightning strikes.
$ 135.00

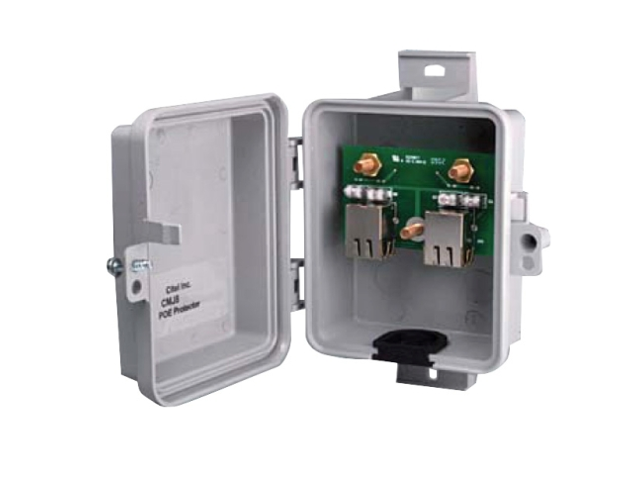

LP-CMJ8-POE-B

Lightning Protector: Outdoor lightning arrestor for protection damage caused by indirect lightning strikes.

$ 180.00
PD 4.9-6.0 2way
Power Divider Outdoor: 1-In 2-way, 4.9-6.0 Ghz, N Female, 20W
$ 195.00
WK-U
Universal weatherproofing kit (for 6 connectors)
$ 37.00



Condiciones Comerciales
Notas: Para preguntas referentes a estos precios y órdenes favor de comunicarse a los Teléfonos: (55) 5355-0089, 7095-6746. e-mail: info@viterbimexico.com

  1. Estos precios son vigentes hasta el mes de Diciembre 2018. Los precios pueden variar sin previo aviso.
  2. Precios en dólares norteamericanos, no incluyen IVA, equipos puestos en Ciudad de México.
  3. Términos de pago 100% al ordenar.
  4. No incluyen costos de instalación, configuración, seguros ni fletes de envio.
  5. Los equipos tienen garantía de 1 año con el fabricante a partir de la fecha de facturación.
  6. Para ordenar favor de mandar una cotización por esta pagina o directamente a ventas@viterbimexico.com
  7. El tiempo de entrega de la orden parcial o total es de hasta 2-6 Semanas.
  8. La orden de compra no es cancelable.
  9. ¿Quieres vender nuestros productos?, escribenos: integrador@viterbimexico.com
